A Simple Way to Bring Clear Audio to any Class

Redcat Access is a simple-to-use solution right out of the box. Its exceptional audio clarity fills the room with the teacher’s natural voice, enabling all students to hear every word. With Access Technology, there is no interference with other classroom technologies and has scalability to meet evolving instructional needs.

Simple, portable, purpose-built for learning

Ready out of the box, no installation required

Plug it in and begin speaking. No need for costly installation, Redcat maximizes your investment in instruction.

Flat-panel speaker excels in speech intelligibility

Exciter technology fills the room with the teacher’s natural voice, enabling students to hear every word.

Portable and flexible

Redcat can easily be moved around to any instructional space, with optional battery it can even be used for outdoor learning.

Full Access to Listening has Never Been Simpler

Redcat’s self-contained design means there is no need for installation.

It’s ready out of the box to deliver high speech intelligibility throughout the classroom.

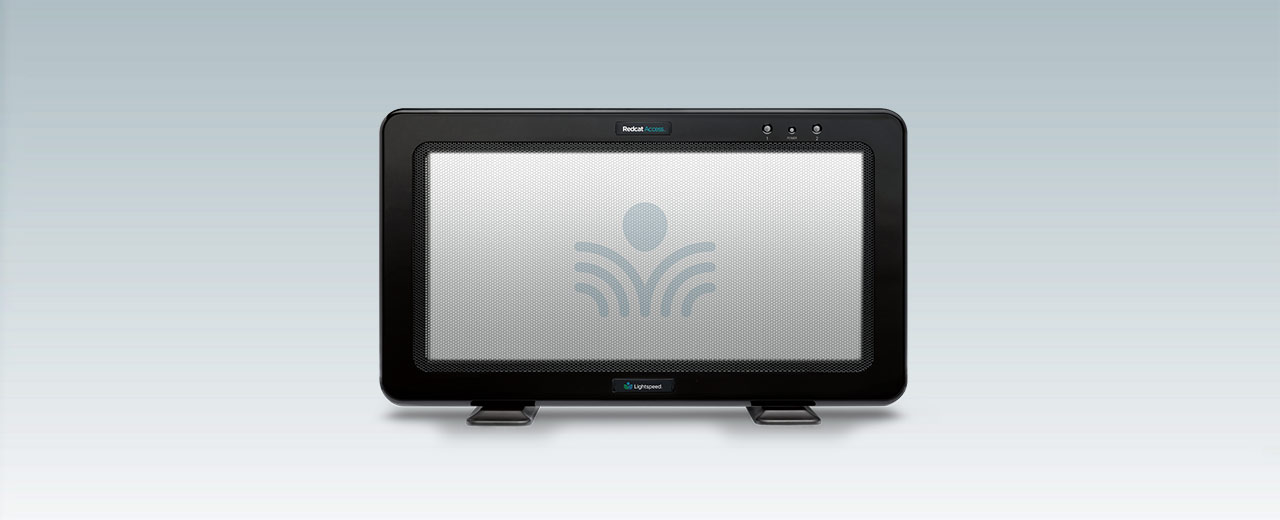

Redcat Access
Flexmike (FMN)
Sharemike (SMN)
Media Connector (MCN)
SKU
RCA
Short Description
All-in-one classroom audio system with integrated receiver, amplifier, and speaker
Power Output
20W
Total Harmonic Distortion
<1%, 10 W
Wireless Range
Up to 200 ft (60m) open field
Device Registration
Push button for transmitter(s), Activate, Pod(s), Media Connector
Audio Input with Volume Control
[1] 3.5mm
ALD Output with Volume Control
[1] 3.5mm on Side Panel
Integrated Speaker
Exciter Technology Flat-panel Speaker
Speaker load impedance
8 Ω
Controls
(1) power switch; (1) microphone volume control; (1) audio input volume control; (1) audio output volume control; (1) tone control
Overall Dimensions (W x H x D)
16" x 9.5" x 1.75" (40.64 x 24.1 x 4.45 cm)
Weight
2.9 lbs (1.3 kg), with battery pack 3.6 lbs (1.6 kg)
Mounting
Table top or wall-mount

SKU
FMN
Description
Pendant-style transceiver
Lanyard
Magnetic clasp with integrated earbud
Wireless Communication
Access Technology (1.9 GHz)
Audio Distortion
<1%
Integrated Microphone
Uni-directional electret
Earbud Output
3.5mm
Audio Input
USB-C 2-way digital audio interface
Battery Power
3.7V Lithium Ion battery pack
Battery Life
8 hours (fully charged)
Charging
2 contacts for cradle charging
USB Connection
Type C for charging and audio
Power
On/off switch
Dimensions
2.9” x 1.1” x 0.7” (74 x 28 x 18mm)
Weight
1.2 oz (34g)
Volume Control Range
+/- 6 dB

SKU
SMN
Description
Handheld transceiver
Lanyard
None
Wireless Communication
Access Technology (1.9 GHz)
Audio Distortion
<1%
Integrated Microphone
Uni-directional electret
Audio Input
USB-C 2-way digital audio interface
Battery Power
3.7V Lithium Ion battery pack
Battery Life
8 hours (fully charged)
Charging
2 contacts for cradle charging
Power
On/off button
Dimensions
6.0” x 1.1” x 1.1” (153 x 28 x 28mm)
Weight
2.6 oz (73g)

SKU
MCN
Description
Transceiver
Power Input
5V/1.0A USB-C connector
Wireless Communication
Access Technology (1.9 GHz)
Tone control
1 bass / treble control
Digital audio interface
USB-C 2-way digital audio interface
Audio output
3.5mm stereo (x2) mixed with volume control
Audio inputs
3.5mm stereo (x4) with volume control
Audio Link/Pair Indicator
1 LED on front panel
Device pairing
Push button
Dimensions (L x W x H)
7.75” x 4.25 x 1.25”(197 x 108 x 32mm)
Weight
7.36 oz (209g)


Sharemike (SMN)
Handheld microphone for student sharing.

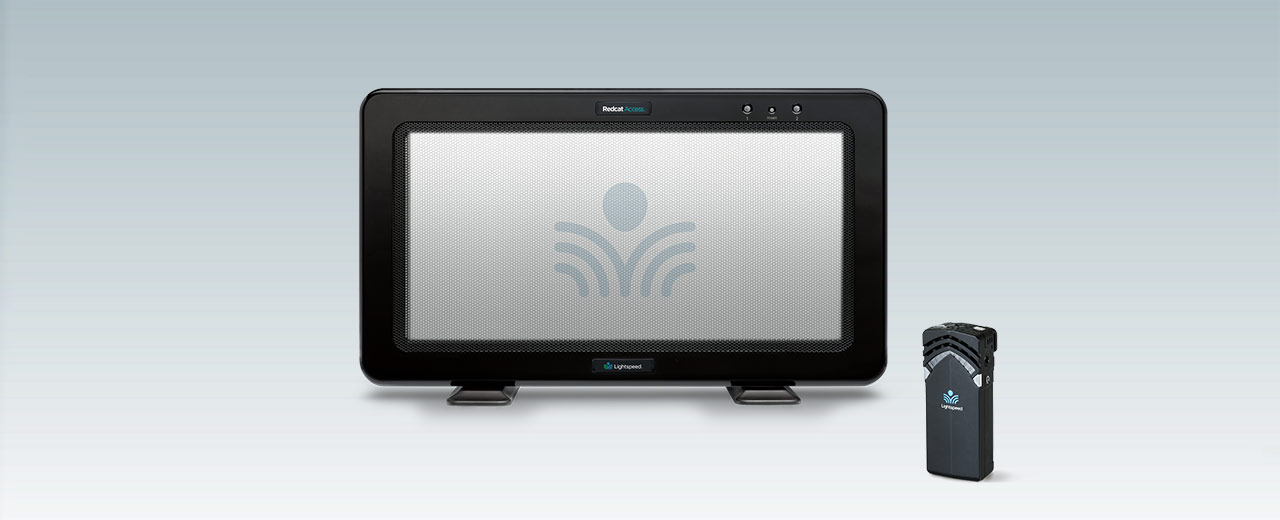

Flexmike (FMN)
A simple, wireless microphone for every student. With tap-to-talk functionality that requires no teacher interface, T3 microphones make it easy for in-room students to share so teachers and remote learners never miss a word.
Media Connector (MCN)
Integrate all classroom multimedia audio sources. Computers, panels, mobile devices, and more can be connected to the compact Media Connector which wirelessly transmits the signal to a Lightspeed audio system.
L14V Lithium Ion Rechargeable Battery
Optional lithium ion rechargeable battery for Redcat Systems purchased after June 1, 2016.
Redcat Carry Case
Redcat and Redcat Access classroom audio systems carry case. Solid construction with internal padding will keep your components organized and safe.
24V 1.75A Power Supply
This UL listed power supply is used with Redcat Access, Activate Station and compatible with older 1st and 2nd generations of IR Redcat.
Redcat Wall Bracket
Redcat wall bracket. Redcat not included.
Redcat Security Bracket
Redcat security bracket. Redcat not included.
3.5mm Stereo Audio Cable
3.5mm stereo audio cable.
